1-Dimensional DerivativesΒΆ

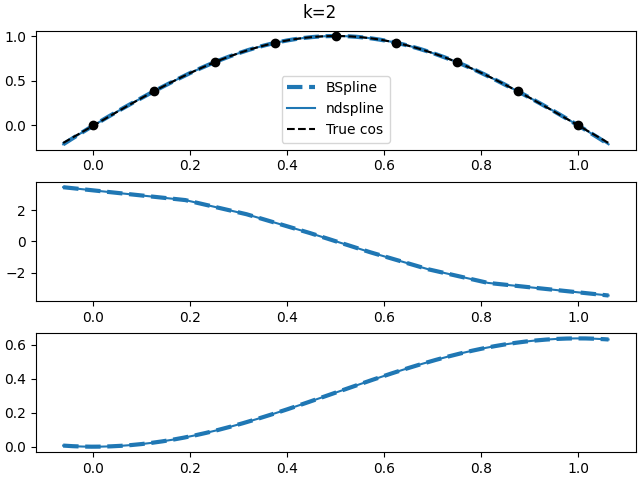

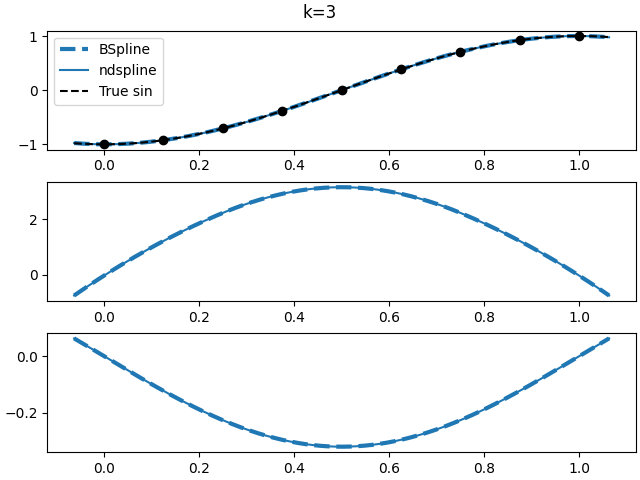

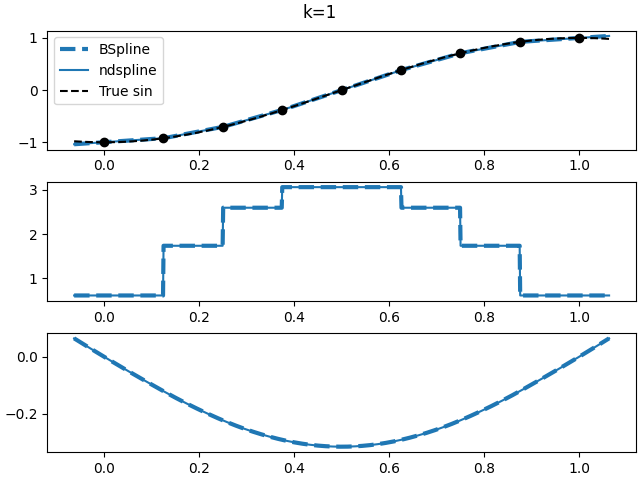

7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 | import numpy as np import matplotlib.pyplot as plt from scipy import interpolate from scipy.stats import norm import itertools import ndsplines def sin(x_in): x = np.pi*(x_in-0.5) return np.sin(x) def cos(x_in): x = np.pi*(x_in-0.5) return np.cos(x) funcs = [sin, cos] x = np.linspace(0, 1, 9) xx = np.linspace(-.0625, 1.0625, 1024) k = 3 for degree in range(1,4): for func in funcs: fvals = func(x) truef = func(xx) if degree > 0: fig, axes = plt.subplots(3,1, constrained_layout=True) else: fig, axes = plt.subplots(2,1, constrained_layout=True) plot_sel = slice(None) plt.gca().set_prop_cycle(None) test_Bspline = interpolate.make_interp_spline(x, fvals, k=degree) splinef = test_Bspline(xx.copy(), extrapolate=True) axes[0].plot(xx, splinef, '--', lw=3.0, label='BSpline') if degree > 0: der_Bspline = test_Bspline.derivative() axes[1].plot(xx, der_Bspline(xx.copy()), '--', lw=3.0, label='BSpline') antider_Bspline = test_Bspline.antiderivative() axes[-1].plot(xx, antider_Bspline(xx.copy()), '--', lw=3.0, label='BSpline') for ax in axes: ax.set_prop_cycle(None) test_NDBspline = ndsplines.make_interp_spline(x, fvals, degrees=degree) NDsplinef = test_NDBspline(xx.copy()) axes[0].plot(xx, NDsplinef, label='ndspline' ) if degree>0: der_NDspline = test_NDBspline.derivative(0) axes[1].plot(xx, der_NDspline(xx.copy()), label='ndspline' ) antider_NDspline = test_NDBspline.antiderivative(0) axes[-1].plot(xx, antider_NDspline(xx.copy()), label='ndspline') axes[0].plot(xx, truef, 'k--', label="True " + func.__name__) axes[0].plot(x, fvals, 'ko') plt.suptitle('k=%d'%degree) axes[0].legend(loc='best') plt.show() |
