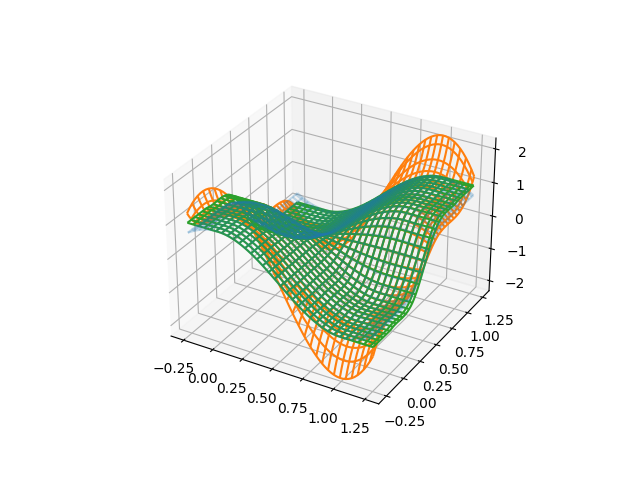

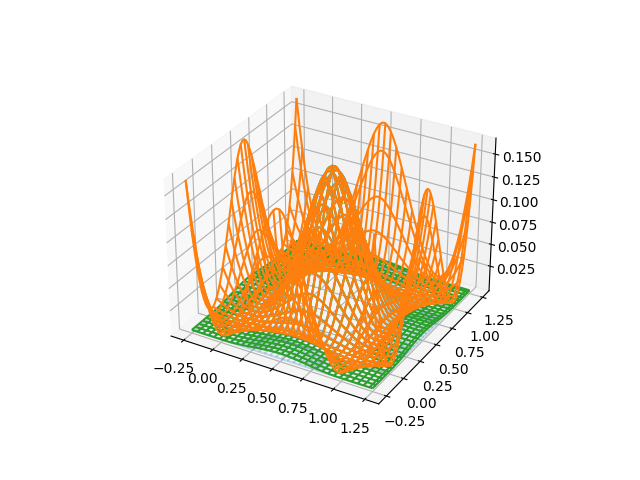

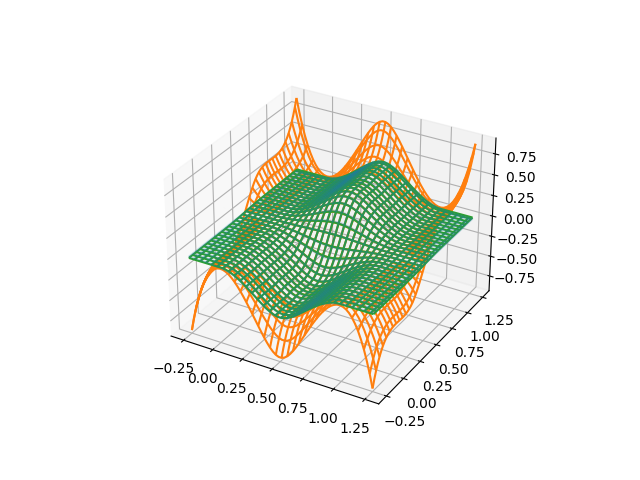

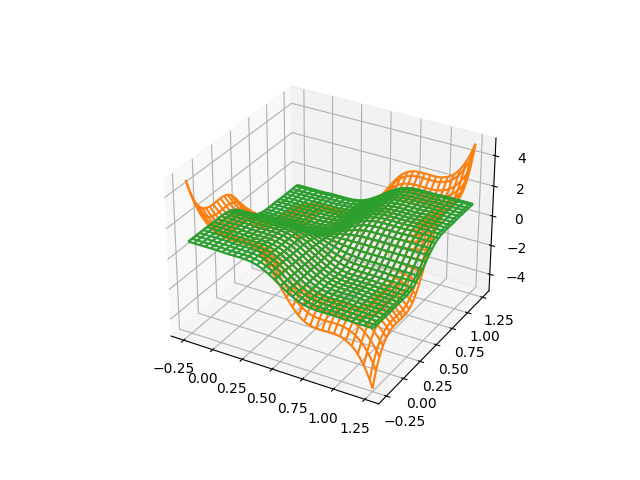

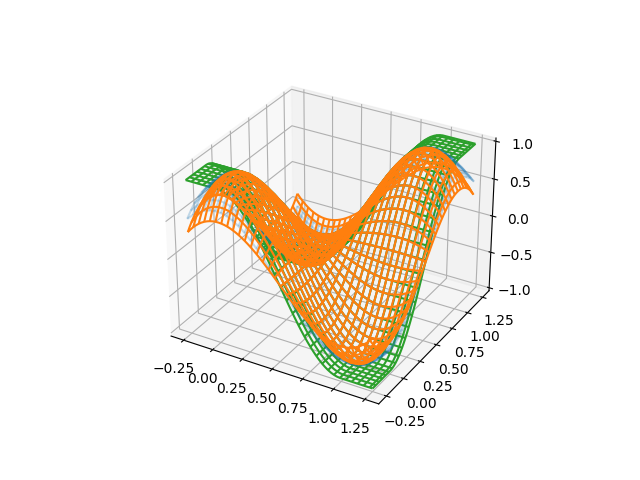

2-Dimensional Interpolation of Tidy DataΒΆ
Out:
True
True
True
True
True
True
True
7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 | import numpy as np import matplotlib.pyplot as plt from scipy import interpolate from scipy.stats import norm from mpl_toolkits.mplot3d import Axes3D import pandas as pd import itertools import ndsplines def gaussian(x_in): z = norm.ppf(.995) x = z*(2*x_in-1) return norm.pdf(x) def sin(x_in): x = np.pi*(x_in-0.5) return np.sin(x) def tanh(x_in): x = 2*np.pi*(x_in-0.5) return np.tanh(x) def dist(x_in, y_in): return np.sqrt((x_in-0.25)**2 + (y_in-0.25)**2) funcs = [gaussian, sin, tanh] def wrap2d(funcx, funcy): def func2d(x_in, y_in): return funcx(x_in)*funcy(y_in) func2d.__name__ = '_'.join([funcx.__name__, funcy.__name__]) return func2d funcs = [ wrap2d(*funcs_to_wrap) for funcs_to_wrap in itertools.combinations_with_replacement(funcs, r=2)] funcs.append(dist) x = np.linspace(0, 1, 7) y = np.linspace(0, 1, 7) xx = np.linspace(0,1,64) yy = np.linspace(0,1,64) xx = np.linspace(-.25, 1.25, 64) yy = np.linspace(-.25, 1.25, 64) k = 3 meshx, meshy = np.meshgrid(x, y, indexing='ij') gridxy = np.r_['0,3', meshx, meshy] gridxy = np.stack((meshx, meshy), axis=-1) tidyxy = gridxy.reshape((-1,2)) meshxx, meshyy = np.meshgrid(xx, yy, indexing='ij') gridxxyy = np.stack((meshxx, meshyy), axis=-1) for func in funcs: fvals = func(meshx, meshy) truef = func(meshxx, meshyy) tidy_array = np.concatenate((fvals.reshape((-1,1)), tidyxy,), axis=1) tidy_df = pd.DataFrame(tidy_array, columns=['z', 'x', 'y',]) test_NDBspline3 = ndsplines.make_interp_spline(gridxy, fvals[:, :, None]) test_NDBspline = ndsplines.make_interp_spline_from_tidy(tidy_df, ['x', 'y'], ['z']) test_RectSpline = interpolate.RectBivariateSpline(x, y, fvals) test_NDBspline2 = ndsplines.make_interp_spline_from_tidy(tidy_array, [1,2], [0]) print(np.allclose(test_NDBspline2(gridxxyy),test_NDBspline(gridxxyy))) fig = plt.figure() ax = fig.add_subplot(111, projection='3d') ax.plot_wireframe(meshxx, meshyy, truef, alpha=0.25, color='C0') ax.plot_wireframe(meshxx, meshyy, test_NDBspline(gridxxyy)[...,0], color='C1') ax.plot_wireframe(meshxx, meshyy, test_RectSpline(meshxx, meshyy, grid=False), color='C2') plt.show() |
Total running time of the script: ( 0 minutes 1.511 seconds)
